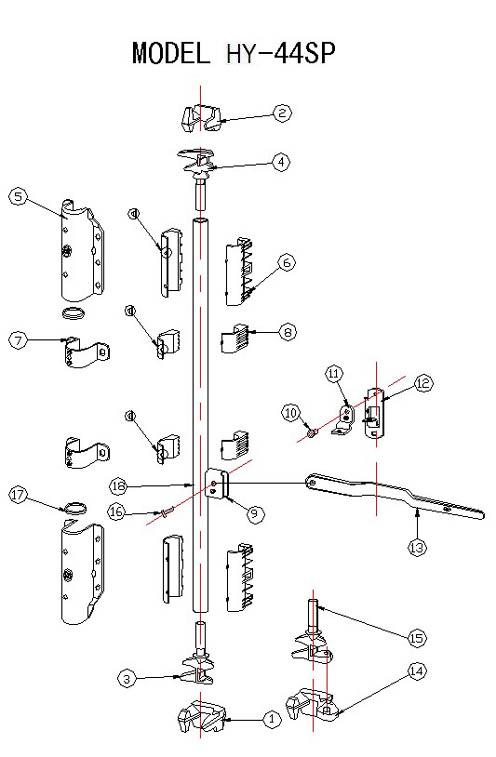

HY-44SP
NO | PART NAME | PART NO. | Q'TY/SET |
1 | KEEPER R.H | 87001/1 | 3 |
2 | KEEPER L.H | 87002/1 | 4 |
3 | ICE BREAK CAM.R.H | 87003/2 | 3 |
4 | ICE BREAK CAM.L.H | 87004/2 | 4 |
5 | BEARING BRACKET OUTER LARGE | 87105/2 | 8 |
6 | LARGE SPRIT BUSH | 87106/4 | 8 |
7 | BEARING BRACKET OUTER SMALL | 87009/4 | 8 |
8 | SMALL SPRIT BUSH | 87010/2 | 8 |
9 | HANDLE HUB | 87030/3 | 4 |
10 | STEEL BUSH | 87031/1 | 4 |
11 | RETAINER CATCH | 87042 | 4 |
12 | RETAINER PLATE | 87043 | 4 |
13 | HANDLE | 87044 | 4 |
14 | SECURA KEEPER | 87021 | 1 |
15 | SECURA CAM | 87022 | 1 |
16 | RIVET | 84049 | 4 |
17 | ANTIRACKING RING | 83900 | 8 |
18 | TUBE | 30001 | 4 |
NOTES |
1.IN CASE OF CORRUGATED DOOR B.B.O.S(87009/4)AND S.S.B(87010/2) CAN BE REPLACED BY B.B.O.S(87009/B) AND S.S.B (87010/B) WITHOUT BACK PLATE. |
