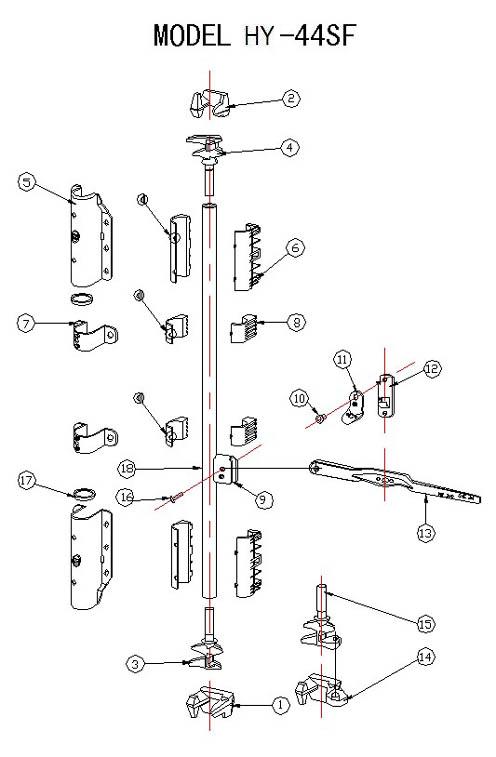

HY-44SF



NO PART NAME PART NO. Q'TY/SET
1 KEEPER R.H 87001/1 3
2 KEEPER L.H 87002/1 4
3 ICE BREAK CAM.R.H 87003/2 3
4 ICE BREAK CAM.L.H 87004/2 4
5 BEARING BRACKET OUTER LARGE 87105/2 8
6 LARGE SPRIT BUSH 87106/4 8
7 BEARING BRACKET OUTER SMALL 87009/4 8
8 SMALL SPRIT BUSH 87010/2 8
9 HANDLE HUB 87030/3 4
10 STEEL BUSH 87031/1 4
11 RETAINER CATCH 87032 4
12 RETAINER PLATE 87033 4
13 HANDLE 87034 4
14 SECURA KEEPER 87021 1
15 SECURA CAM 87022 1
16 RIVET 84049 4
17 ANTIRACKING RING 83900 8
18 TUBE 30001 4



NOTES
1.IN CASE OF CORRUGATED DOOR B.B.O.S(87009/4)AND S.S.B(87010/2) CAN BE REPLACED BY B.B.O.S(87009/B) AND S.S.B (87010/B) WITHOUT BACK PLATE.
