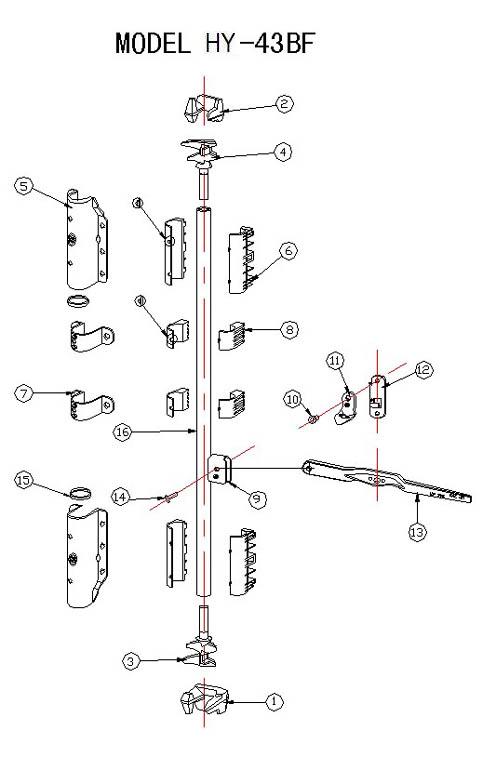

HY-43BF
NO | PART NAME | PART NO. | Q'TY/SET |
1 | KEEPER R.H | 87001/1 | 4 |
2 | KEEPER L.H | 87002/1 | 4 |
3 | ICE BREAK CAM.R.H | 87003/2 | 4 |
4 | ICE BREAK CAM.L.H | 87004/2 | 4 |
5 | BEARING BRACKET OUTER LARGE | 87105/2 | 8 |
6 | LARGE SPLIT BUSH | 87106/4 | 8 |
7 | BEARING BRACKET OUTER SMALL | 87009/4 | 8 |
8 | SMALL SPLIT BUSH | 87010/2 | 8 |
9 | HANDLE HUB | 87030/2 | 4 |
10 | STEEL BUSH | 87031/1 | 4 |
11 | RETAINER CATCH | 87032 | 4 |
12 | RETAINER PLATE | 87033 | 4 |
13 | HANDLE | 87034 | 4 |
14 | RIVET | 84049 | 4 |
15 | ANTIRACKING RING | 83900 | 16 |
16 | TUBE | 30001 | 4 |
NOTES |
1.IN CASE OF CORRUGATED DOOR B.B.O.S(87009/4)AND S.S.B(87010/2) CAN BE REPLACED BY B.B.O.S(87009/B) AND S.S.B(87010/B) WITHOUT BACK PLATE |
