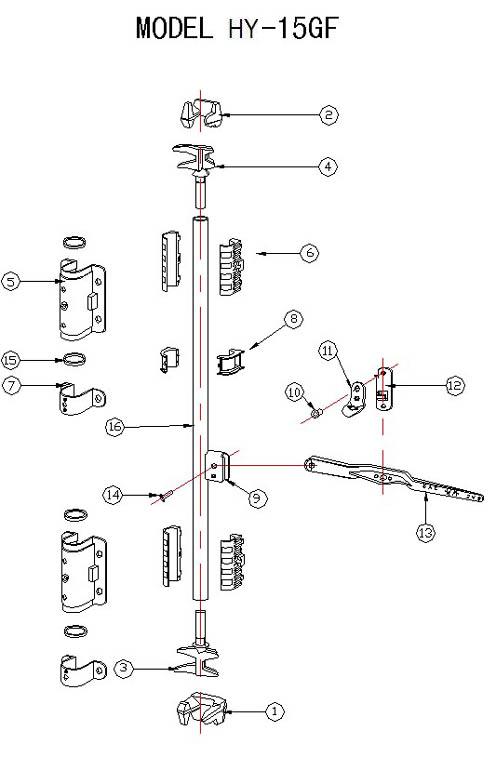

HY-15GF
| NO | PART NAME | PART NO. | Q'TY/SET |
| 1 | KEEPER R.H | 87001/4 | 4 |
| 2 | KEEPER L.H | 87002/4 | 4 |
| 3 | CAM.R.H | 87003 | 4 |
| 4 | CAM.L.H | 87004 | 4 |
| 5 | BEARING BRACKET OUTER LARGE | 87105/4 | 8 |
| 6 | LARGE SPLIT BUSH | 87006/5 | 8 |
| 7 | BEARING BRACKET OUTER SMALL | 86013 | 4 |
| 8 | SMALL SPLIT BUSH | 84006/1 | 4 |
| 9 | HANDLE HUB | 87030/2 | 4 |
| 10 | STEEL BUSH | 87031 | 4 |
| 11 | RETAINER CATCH | 87032 | 4 |
| 12 | RETAINER PLATE | 87033 | 4 |
| 13 | HANDLE | 87034 | 4 |
| 14 | RIVET | 84049 | 4 |
| 15 | ANTIRACKING RING | 83900 | 16 |
| 16 | TUBE | 30001 | 4 |
| NOTES |
| 1.IN CASE OF CORRUGATED DOOR B.B.O.S(87009/4)AND S.S.B(87010/2) CAN BE REPLACED BY B.B.O.S(87009/B) AND S.S.B(87010/B) WITHOUT BACK PLATE. |
| 2.HANDLE: 87034 FOR FLAT DOOR,87034/2 FOR CORRUGATION DOOR (NO NEED BACK PLATE) |
