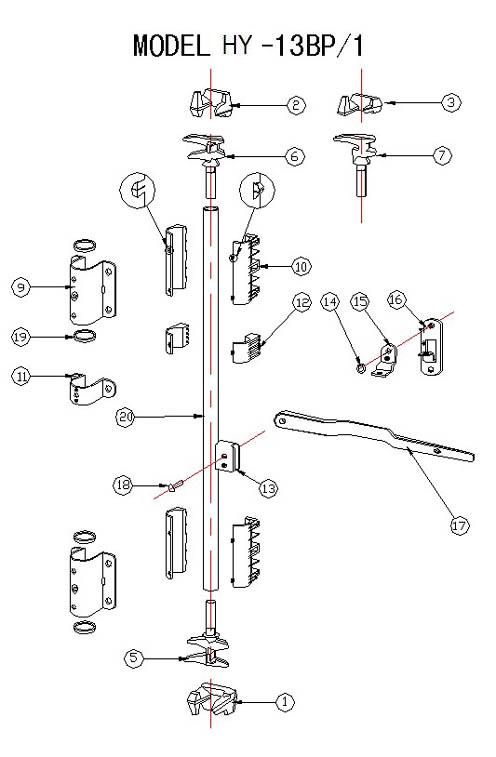

HY-13BP/1





NO PART NAME PART NO. Q'TY/SET
1 KEEPER R.H 87001/1 2
2 KEEPER L.H 87002/1 2
3 SEMI KEEPER R.H 87001/3 2
4 SEMI KEEPER L.H 87002/3 2
5 ICE BREAK CAM R.H 87003/2 2
6 ICE BREAK CAM L.H 87004/2 2
7 SEMI CAM R.H 87003/6 2
8 SEMI CAM L.H 87004/6 2
9 BEARING BRACKET OUTER LARGE 87005 8
10 LARGE SPLIT BUSH 87006/4 8
11 BEARING BRACKET OUTER SMALL 87009/4 4
12 SMALL SPLIT BUSH 87010/2 4
13 HANDLE HUB 87030/2 4
14 STEEL BUSH 87031 4
15 RETAINER CATCH 87042 4
16 RETAINER PLATE 87043 4
17 HANDLE 87044 4
18 RIVET 87011 4
19 ANTIRACKING RING 83900 16
20 TUBE 30001 4

NOTES
1.IN CASE OF CORRUGATED DOOR B.B.O.S(87009S)AND S.S.B(87010S) CAN BE REPLACED BY B.B.O.S(87009/4) AND S.S.B(87010/B) WITHOUT BACK PLATE.
2.HANDLE: 87044 FOR FLAT DOOR,87044/2 FOR CORRUGATION DOOR
