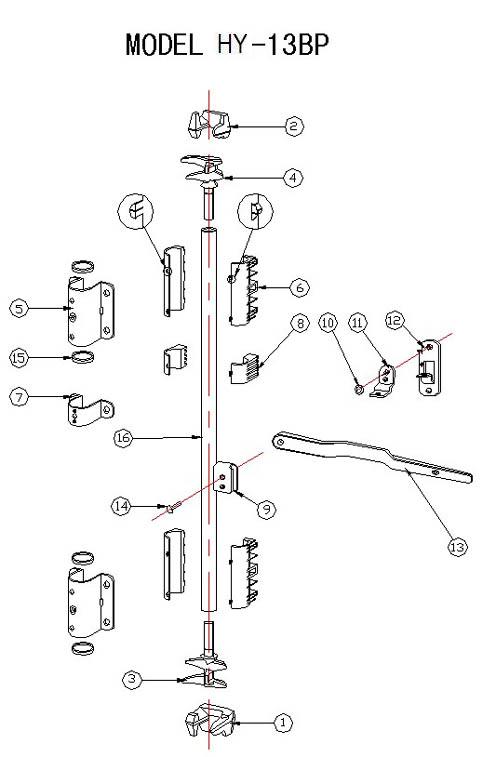

HY-13BP
| NO | PART NAME | PART NO. | Q'TY/SET |
| 1 | KEEPER R.H | 87001/1 | 4 |
| 2 | KEEPER L.H | 87002/1 | 4 |
| 3 | ICE BREAK CAM R.H | 87003/2 | 4 |
| 4 | ICE BREAK CAM L.H | 87004/2 | 4 |
| 5 | BEAKING BRACKET OUTER LARGE | 87005 | 8 |
| 6 | LARGE SPLIT BUSH | 87006/4 | 8 |
| 7 | BEARING BRACKET OUTER SMALL | 87009/4 | 4 |
| 8 | SMALL SPLIT BUSH | 87010/2 | 4 |
| 9 | HANDLE HUB | 87030/2 | 4 |
| 10 | STEEL BUSH | 87031 | 4 |
| 11 | RETAINER CATCH | 87042 | 4 |
| 12 | RETAINER PLATE | 87043 | 4 |
| 13 | HANDLE | 87044 | 4 |
| 14 | RIVET | 87011 | 4 |
| 15 | ANTIRACKING RING | 83900 | 16 |
| 16 | TUBE | 30001 | 4 |
| NOTES |
| 1.AN ALTERNATIVE KEEPERS(87101.87102) |
| 2.IN CASE OF CORRUGATED DOOR B.B.O.S(87009/4)AND S.S.B(87010/2) CAN BE REPLACED BY B.B.O.S(87009/B) AND S.S.B(87010/B) WITHOUT BACK PLATE. |
| 3.HANDLE: 87044 FOR FLAT DOOR,87044/2 FOR CORRUGATION DOOR |
