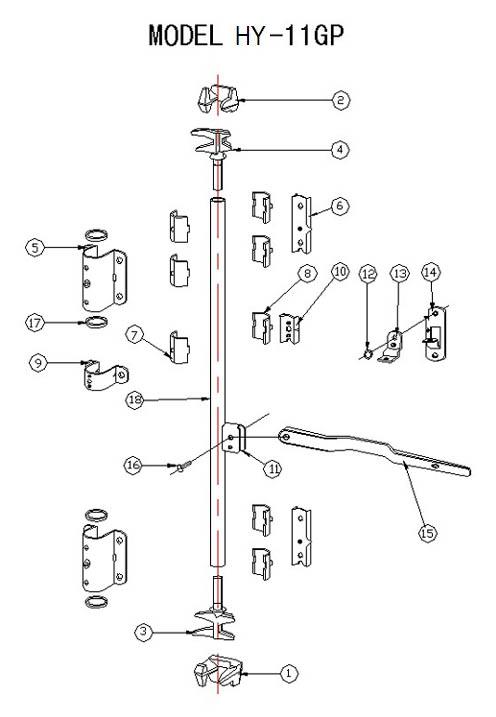

HY-11GP
| NO | PART NAME | PART NO. | Q'TY/SET |
| 1 | KEEPER R.H | 87001/1 | 4 |
| 2 | KEEPER L.H | 87002/1 | 4 |
| 3 | CAM.R.H | 87003 | 4 |
| 4 | CAM.L.H | 87004 | 4 |
| 5 | BEARING BRACKET OUTER SMALL | 87005 | 8 |
| 6 | BEARING BRACKET INNER SMALL | 87006 | 8 |
| 7 | UPPER SHORT SPLIT BUSH | 87007 | 20 |
| 8 | LOWER SHORT SPLIT BUSH | 87008 | 20 |
| 9 | BEARING BRACKET OUTER SMALL | 87009/S | 4 |
| 10 | BEARING BRACKET INNER SMALL | 87010/S | 4 |
| 11 | HANDLE HUB | 87030/2 | 4 |
| 12 | STEEL BUSH | 87031 | 4 |
| 13 | RETAINER CATCH | 87042 | 4 |
| 14 | RETAINER PLATE | 87043 | 4 |
| 15 | HANDLE | 87044 | 4 |
| 16 | RIVET | 87011 | 4 |
| 17 | ANTIRACKING RING | 83900 | 16 |
| 18 | TUBE | 30001 | 4 |
| NOTES |
| 1.AN ALTERNATIVE KEEPERS(87101.87102) |
| 2.IN CASE OF CORRUGATED DOOR B.B.O.S(87009S)AND S.S.B(87010S) CAN BE REPLACED BY B.B.O.S(87009/4) AND S.S.B(87010/B) WITHOUT BACK PLATE. |
| 3.HANDLE: 87044 FOR FLAT DOOR,87044/2 FOR CORRUGATION DOOR |
